HEKA I+

Product of the year 2024

HEKA I+, was awarded "Product of the Year 2024" in the Equipment category by the French Dental Association, at the ADF exhibition in Paris.

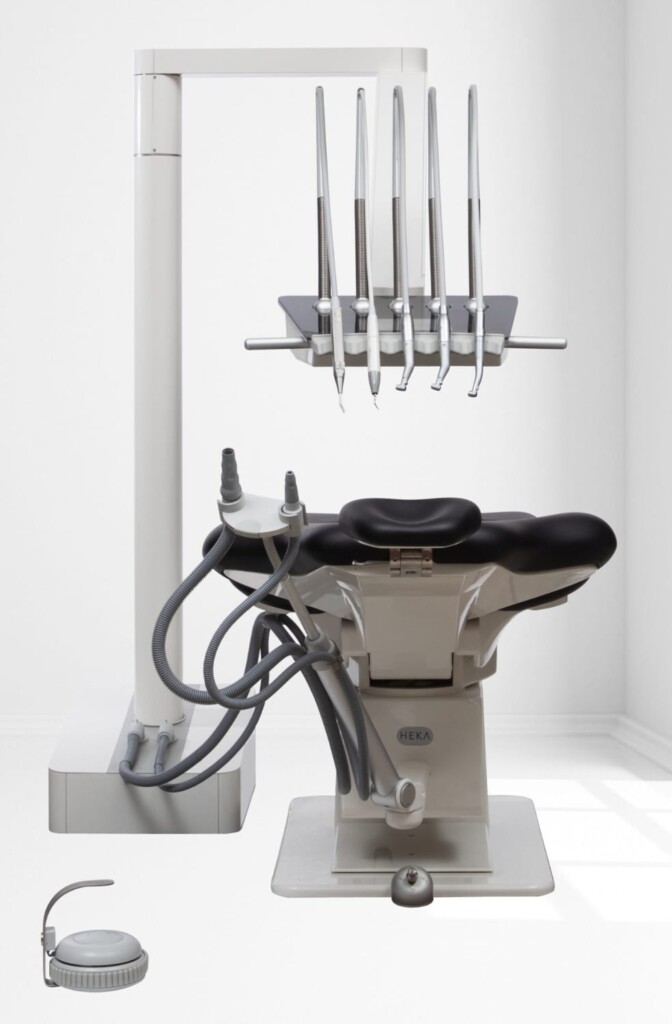

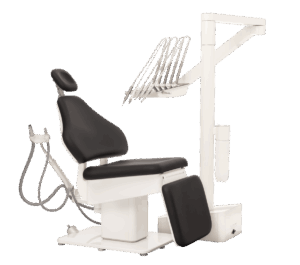

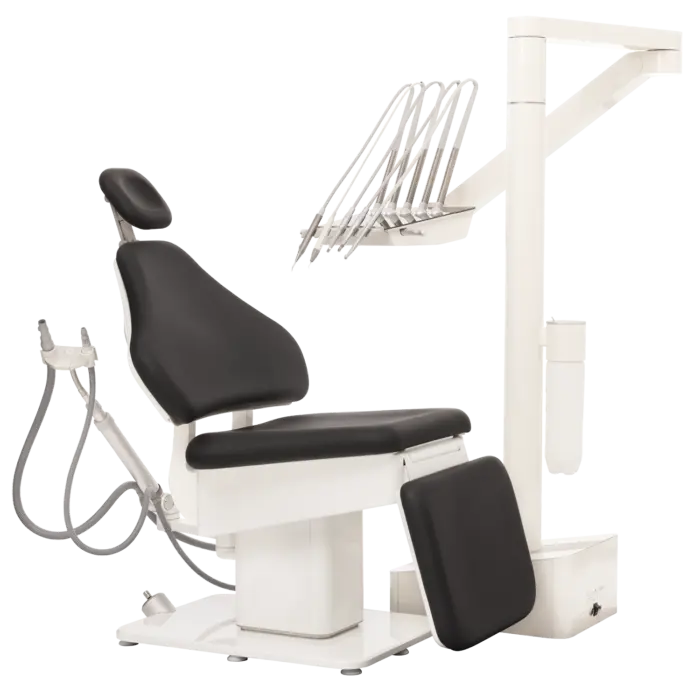

The elegant HEKA I+ is a space-saving pillar unit in the well-known Heka S design, a beautiful, functional and Nordic design of high quality.

With the HEKA I+, the ergonomic telescopic arm is placed with the suction on the chair or, on the wall behind the chair and fully achieves the same flexibility and excellent ergonomics that is characteristic of all Heka models.

HEKA I+ requires very little space and is therefore very suitable for smaller practice rooms

Every HEKA dental care unit is individually manufactured to suit you and your team’s unique preferences and requirements.

This gives you optimal opportunity for simple and ergonomic work, where the HEKA I+ guides you through treatments - both automatically and individually

The HEKA I+ also takes up less space, giving you more choice and freedom to design your practice as you want it - and at the same time allowing more dental care units in fewer square metres for your business.

Like all Heka Dental’s other products, HEKA I+ is manufactured in Denmark.

Lighting ergonomics

We all know the familiar situation where we want to keep our eyes on the patient’s mouth, but often we are forced to look away to check instrument settings during treatment – such as simple information about instrument spray.

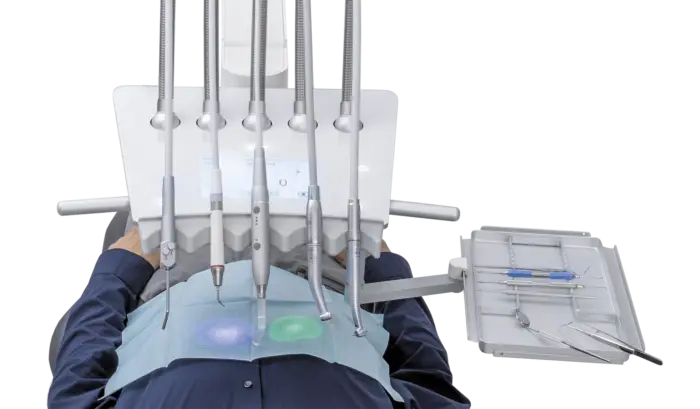

Lighting ergonomics work by two LEDs projecting the spray combination on the patient’s napkin/torso.

The idea is that the dentist uses his peripheral vision to capture the colours on the napkin to validate whether the spray combination is set as desired.

In this manner you avoid having to turn the head and can maintain focus in the mouth of the patient.

A dentist using lighting ergonomics on Heka I+ can reduce movements of the neck and strains of the eyes significantly.

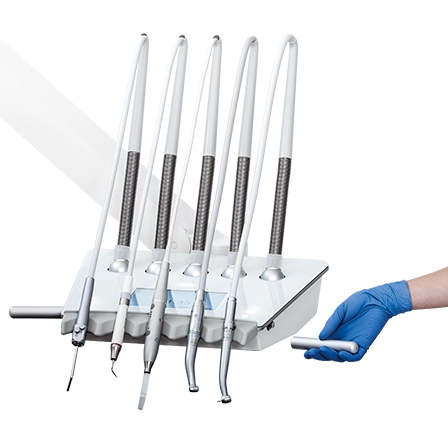

Delivery system

The delivery system is of the same design and quality as known from Heka S+.

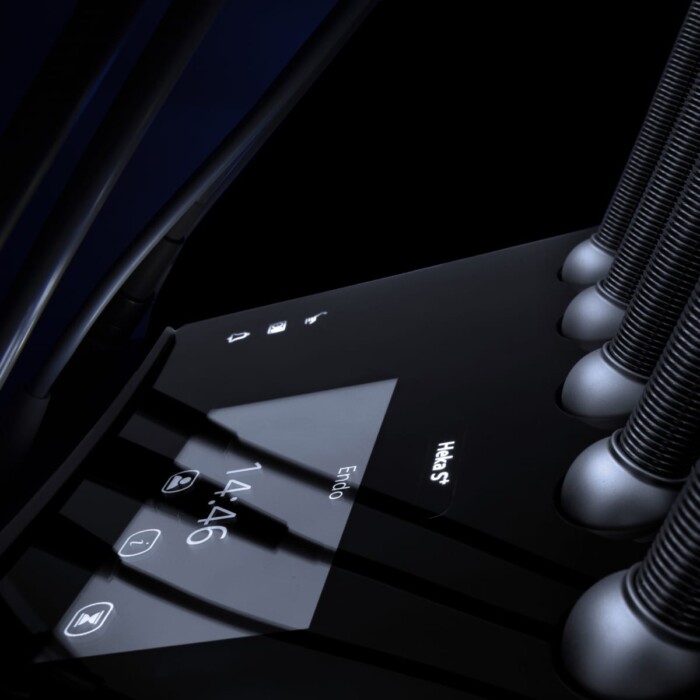

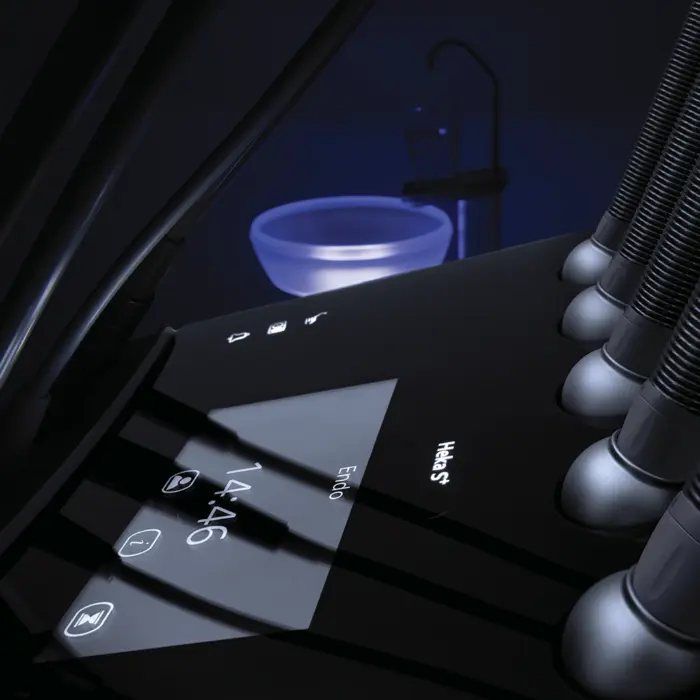

Below the glass surface the display and touch keys are integrated - they are only visible when relevant to the situation-specific function - creating a simple expression and avoiding eye strain.

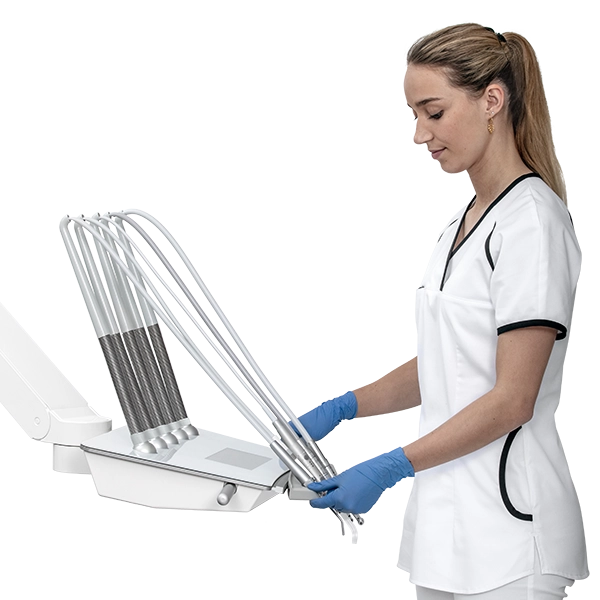

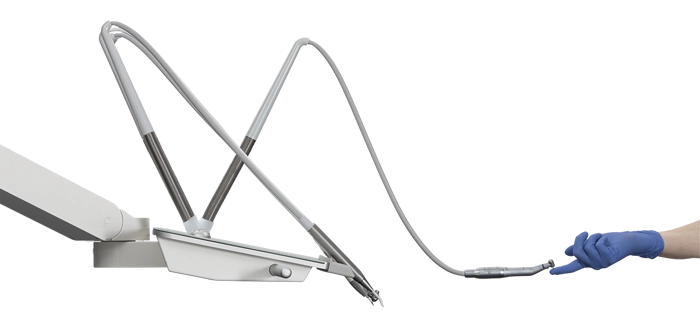

The balance suspension is a key element in supporting an ergonomic workflow. Each instrument is individually calibrated, where the spring accurately neutralises the weight of the instrument at the patient’s mouth - without pulling back.

This helps the Heka I+ to carry the instrument without impeding your freedom of movement. As a result, you can work with high precision, with minimal strain on your wrist and forearm. Balanced unit instruments reduce fatigue and increase the precision of work.

Get an overview at a glance

Our advanced motor control makes it possible to control all parameters such as torque, direction of rotation, speed of rotation as well as chip blow, spray selection, sterile water flow and functions such as Auto Reverse and Auto Forward.

To make it easy and precise to achieve the desired speed, you can set min / max in the working range for which you wish to adjust the speed within via the foot control. In this way you can ensure that you e.g., will not exceed the maximum rate of ongoing treatment.

Via the touch display and keys on the dashboard you can change or adjust the current settings.

The narrow design of the delivery tray is one of the most important prerequisites for achieving the most ergonomic working positions around the patient without unnecessary lifting of the elbow and shoulders.

With Heka One Connect, you can set and customise your HEKA I+ dental care unit to suit your working day - and it is also easy to extract data if you need an overview of treatment information.

A typical problem is that too much information on the display quickly becomes unmanageable and therefore requires more time to focus on it. With Heka One Connect, we have therefore made it possible for you to choose which information is displayed in any given situation, so that you can get an overview at a glance. We believe that it should be easy to select the information that should be visible in a selective view.

A clever feature is that with selected spray water on the turbine or the motor instrument, both automatic and mechanical blowing can be selected - so you will not need air from the syringe instrument to dry or remove liquid from the area.

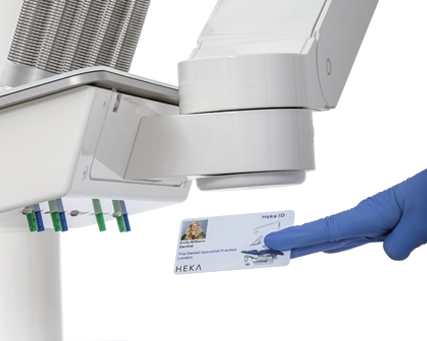

Heka ID offers completely new flexible options

We always have you and your requirements in mind. When we develop our products with a Heka ID card, you can maintain the workflow you are used to without having to think about it. If your practice has several rooms with several dentists, or if many different treatments are carried out, a Heka ID card is a smart solution.

We have placed the contactless point in the middle of the delivery tray, making it easy to use for you and your assistant. You can have several different treatments on Heka ID cards, so it is easy to change the settings to a specific treatment.

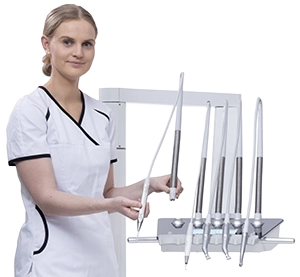

Instrument arm

At Heka Dental, we consider the arm for the instrument table to be a very important part of the units. On all dental units from Heka Dental, the arms for the instrument table are very long, and they are constructed of the best materials and equipped with oversized ball bearings in all joints.

This means you can position the instrument table so that you can always work ergonomically correctly. This also means that the movements in the arm are very easy and comfortable.

For HEKA I+ , this also means that the unit will be very flexible (ambidextrous), so that many dentists can work on the same unit. Both right- and left-handed dentists can easily work in optimal ergonomic positions.

In addition, the suction on the Heka I+ is mounted on the chair as standard and can be turned both to the right and to the left. It is also possible to install the suction behind the unit in 12 o’clock position.

HEKA I+ will be the perfect unit for those who want a right-left hand unit (ambidextrous equipment), and it is regardless of whether you work with 2 or 4 hands in the treatment situation.

The unit can be transformed from being a right-hand unit to a left-hand unit in a few seconds, and at the same time have a firm and stable construction and installation that will last for many years.

Integrated floor box

The the floor box is available in two versions:

A floor box with integrated connection for suction. The suction will be chair-mounted with the telescopic head used also on HEKA S+.

If the HEKA I+ is ordered without suction in cases where a 3rd party suction is used, the floor box will be delivered without connections allowing for a completely smooth top plate

Suction

The telescopic arm with the suction can easily be adjusted to work 180 degrees around the patient to avoid twisting the upper body when reaching for the suction.

The telescopic arm can be adjusted from two to four-handed treatment or from right- to left-handed dentist in seconds.

The suction comes as standard with two selective suctions and adjustable hand pieces or with hygienic, autoclavable aluminium hand pieces for surgery.

The holder is available in an open or closed version.

The telescopic arm is mounted on the chair base, under the patient.

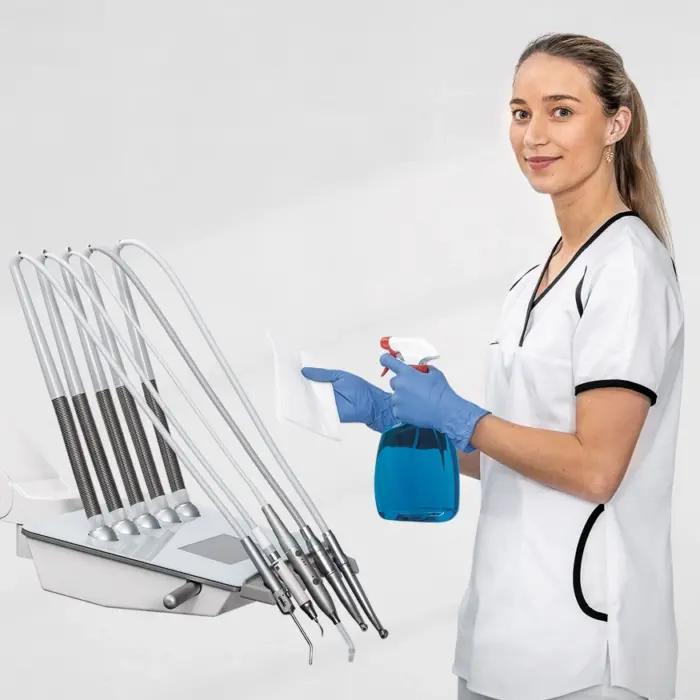

Prioritising top hygiene

HEKA I+ is designed to be as hygienic and clean as possible.

Tempered glass surface

It includes well thought out details such as the use of the hardened glass surface on the dashboard which, due to the hard, smooth surface, is particularly effective in cleaning and disinfecting.

The integrated touch display ensures that there are no buttons or switches, which can collect dust and dirt. The display can, of course, be locked during cleaning and automatically unlocks after 2 minutes, so the unit is ready again before the next patient.

Natural contact points

Natural contact points, such as handles and instrument covers, can easily be removed for cleaning and autoclaving. This also includes the handles for the operating lamp. Please refer to the equipment list for additional equipment that optimizes the hygiene of a HEKA I+ .

Options and equipment

Instrument flush:
The instrument flush is connected on the suction hose via an adapter.

Automatic suction cleaning:
With the automatic suction cleaning, a nozzle is activated at the end of the suction hoses, which continuously cleans the suction system with chemicals or just clean water and helps to keep the entire suction system clean and efficient. It is possible to activate flushing with chemicals or only water while working with a patient. This ensures effective removal of all impurities without the hose drying out, to prevent the impurities solidifying on the inside of the hose. Regular flushing with active chemicals between patients or in the evening can ensure that colony forming units, germs and bacteria in the suction system are reduced.

Cup holder and instrument hanger for tray:
It is possible to mount both cup holder and instrument bracket and combine them as desired.

External 2L water bottle:
In addition to connecting to the public water supply, the HEKA I+ can be equipped with a system of independent water supply via a 2L bottle. This system can also be used to flush the unit’s hoses with cleaning fluid.

Automatic suction system cleaning
Cup holder and instrument hanger for tray
External 2L water bottle
Instrument flush adapter
We are thinking about the next generations
  • Heka Dental helps minimise our environmental impact, as this is reduced thanks to the long service life of our products.
  • We use aluminium that has a life cycle that only very few metals can match, and we also use recyclable aluminium.
  • We work continuously with our suppliers to reduce energy requirements in our production process by finding better alternatives for transport, and in our development and design particularly, we work with solutions to ensure that our products can be reused to a greater extent.

We take responsibility - ensuring the best care for you

We always have a team of specialists available to solve problems.

At Heka Dental and our dedicated partners, we know how important it is to your practice that you have the highest uptime at your treatment facilities. Which is why we never compromise on the choice of materials when we build your dental care unit and we are proven to be among the best on the market with regards to longevity and reliability.

In the event of a problem, we always have a network of technicians available, who can visit your practice to ensure you are up and running in no time and create value for your business. With local spare parts warehouses in Europe and overseas markets, we can always deliver quickly.

We take responsibility - ensuring the best care for you
We always have a team of specialists available to solve problems.

At Heka Dental and our dedicated partners, we know how important it is to your practice that you have the highest uptime at your treatment facilities. Which is why we never compromise on the choice of materials when we build your dental care unit and we are proven to be among the best on the market with regards to longevity and reliability.

In the event of a problem, we always have a network of technicians available, who can visit your practice to ensure you are up and running in no time and create value for your business. With local spare parts warehouses in Europe and overseas markets, we can always deliver quickly.

Upholstery colours

Choice of colours

The upholstery of the patient’s chair is available in 18 standard colours, however, it is possible to deliver the chair’s upholstery in special colours to match the colours of the interior of the clinic.

Contact your authorized Heka distributor for further information on possibilities and prices.

Specifications

Included in Heka I+ on delivery (depending on chosen options):
  • Quality product made from aluminium and glass
  • Quality valves from Germany
  • Lacquered surfaces in aluminium
  • Surface on delivery system in tempered glass with integrated touch buttons
  • Instrument arm in cast aluminium
  • Oversized double needle bearings in middle arm and delivery system
  • Instrument arm with 337° rotation offers both right- and left-handed operation
  • Instrument arm with double spring supported height adjustment
  • Adjustable setting of joints and height adjustable instrument arm.
  • Lighting ergonomics
  • Individually balanced instruments
  • Optional delivery system for five or six instruments
  • Hygienic, integrated multi-touch panel in the glass surface of the delivery system
  • Hygienic, autoclavable instrument holders
  • Removable, autoclavable handles on delivery system
  • Return air filter
  • Selective suction (large and small)
  • Multi-flexible telescopic suction holder

Additional equipment and options:

Turbine
  • Multiflex high speed, fibre optic outlet
Micromotors
  • Bien Air MX2 incl. Optima control 100- 40.000 rpm/min. (up to 2 pcs.)
  • Bien Air, MCX brushless, 1000-40.000 rpm/min. (up to 3 pcs.)
Syringes
  • UNIC, 3:1
  • Luzzani, 3:1 or 6:1
  • Luzzani, 7:1 with/light
Scaler
  • Newtron (with/without LED)
  • W&H with LED
  • EMS ”No Pain” (with/without LED)
  • NSK Varios (with/without LED)
  • EMS Airflow: built-in version
Curing light
  • UNIC (Bluedent Express)
  • Starlight Sler (with button or foot control activation)
  • Acteon MiniLED
Intraoral Camera
  • Sopro 617 or Soprocare, excl. software
  • Dürr VistaCam iX HD
Instrument arm- and delivery system options
  • Tray support in various lengths
  • Optional double tray support
  • Single or double tray
  • Protection sheet for tray (autoclavable)
Monitor
  • 22” monitor mounted on lamp support with flexible arm
  • iPad/tablet holder (on delivery system)
Water- and water treatment
  • External water bottle - 2 liter
  • Automatic instrument flush
  • Sterile water pump
  • Automatic suction cleaning system
Operation lamps and room light
  • Faro EVA LED operation lamp 50.000 Lux, 4000K, 5000K or 5700K, with Composave mode (11.000Lux/2700K), for Heka Design arm
  • Faro EVA Cam LED operation lamp, specifications identical to std. EVA lamp, as well as with integrated D-Camera, for Heka Design arm
  • Faro EVA LED operation lamp, specifications identical to std. EVA lamp, as well as built-in THEIATECH LED and Heka Design arm
  • Faro Maia LED operation lamp 35.000 Lu x, 5000K with standard arm
  • Faro Sidèrea LED room light
X-ray

It is not recommended to install X-Ray on Heka I+

Foot control
  • Ergonomic round (wired or wireless)
  • Round variable (wired or wireless)
  • Universal variable (wired or wireless)
UnicLine patient’s chair
  • Two electric motors
  • Approved up to 180 kg.
  • High lifts for standing treatment
  • Horizontal position available
  • Double-articulated head rest
  • One joystick (up to three joysticks possible)
  • Four programs or three programs and ‘Last Position’
  • Headrest with hole
  • Armrest - right and/or left, revolving
  • Footrest, foldable
  • Hanger for foot control
Upholstery
  • Comfort Shape Upholstery (standard)
  • Comfort Memory Upholstery
